12.1 Inch YPC-ZD Fanless Industrial Touch Panel PC, MES Production Line HMI All-in-one Control Computer

Display Size｜12.1 inch
Touch Type｜Capacitive / Resistive Touch Optional
Processor｜Intel i3/i5/i7 7th/10th/12th Gen
Application Scene｜MES Intelligent Production Line
Product description: Senke provides 12.1 inch YPC-ZD fanless industrial touch panel PC, dedicated for MES intelligent production line. Adopting full fanless passive cooling design, this industrial HMI supports real-time d
INQUIRY

YPC-ZD Series Overview

Pre-order Features: Fanless passive cooling, industrial touch screen, stable for MES system, anti-interference, embedded installation support

[Introduction] Passive zero-fan heat dissipation architecture, compatible with mainstream MES software, shockproof & dustproof, precise touch response, wide temperature operation, support personalized function customization.

[System] Optional Intel Core i3/i5/i7 7th,10th,12th generation processors, compatible with Windows and Linux operating systems.

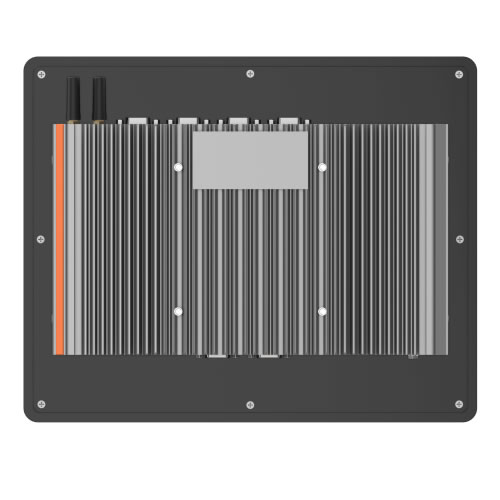

[Heat Dissipation] No built-in cooling fan, aluminum alloy front panel accelerates heat conduction, effectively reduce equipment failure rate and maintenance cost on production site.

[Environment] Sealed reinforced chassis, withstand vibration and temperature fluctuation on workshop production lines to realize long-term continuous operation.

[Interfaces] Dual Gigabit Ethernet, RS232/RS485 serial ports, multiple USB, HDMI, audio port, wide voltage phoenix power terminal, convenient to connect with PLC, scanners and workshop acquisition equipment.

[Installation] Embedded mounting, wall-mounted mounting and desktop bracket mounting are optional.

Basic Specifications

Item	7th Gen Config	10th Gen Config	12th Gen Config
Model	YPC-121ZD	YPC-121ZD	YPC-121ZD
Display	12.1"	12.1"	12.1"
Touch Screen	10-point capacitive touch / 4-wire resistive touch optional	10-point capacitive touch / 4-wire resistive touch optional	10-point capacitive touch / 4-wire resistive touch optional
Resolution	1280*800	1280*800	1280*800
Brightness	250cd/m² (Custom brightness available)	250cd/m² (Custom brightness available)	250cd/m² (Custom brightness available)
Processor	Intel® Kaby Lake 7th Gen (i3/i5/i7)	Intel® Comet Lake 10th Gen (i3/i5/i7)	Intel® Alder Lake 12th Gen (i3/i5/i7)
BIOS	AMI UEFI BIOS	AMI UEFI BIOS	AMI UEFI BIOS
Chipset	Intel® SOC	Intel® SOC	Intel® SOC
Graphics	Integrated Intel® HD Graphics 620	Integrated 10th Gen Intel® UHD Graphics	Integrated Intel® Iris® Xe Graphics
Network	2*RTL8111H Gigabit Ethernet, supports WoL / PXE	2*RTL8111H Gigabit Ethernet, supports WoL / PXE	2*RTL8111H Gigabit Ethernet, supports WoL / PXE
Heat Dissipation	Full fanless passive cooling	Full fanless passive cooling	Full fanless passive cooling
I/O Interface	USB, RS232/RS485, HDMI, Audio, Phoenix power terminal	USB, RS232/RS485, HDMI, Audio, Phoenix power terminal	USB, RS232/RS485, HDMI, Audio, Phoenix power terminal
Installation	Embedded / Wall-mounted / Desktop stand	Embedded / Wall-mounted / Desktop stand	Embedded / Wall-mounted / Desktop stand
Operating System	Windows 10/11, Linux optional	Windows 10/11, Linux optional	Windows 10/11, Linux optional
