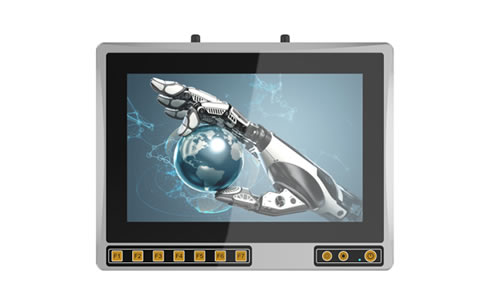

10.4 Inch YPC-VC Compact Fanless Embedded Industrial Touch Panel PC, Rugged HMI All-in-one Control Computer

10.4 inch
Capacitive / Resistive Touch Optional
Intel i3/i5/i7 7th/10th/12th Gen
Fanless Passive Heat Dissipation
Product description: Senke supplies 10.4 inch YPC-VC compact fanless embedded industrial touch panel pc. This small-size rugged HMI computer adopts silent passive cooling, suitable for limited installation space. It runs
INQUIRY

YPC-VC Series Overview

Pre-order Features: Mini compact size, fanless silent operation, embedded mounting, rugged industrial HMI, excellent anti-interference capability

[Introduction] Passive fanless cooling architecture, flexible system configuration, shockproof & anti-magnetic interference, accurate touch response, wide working temperature range, multi-functional customization available.

[System] Optional Intel Core i3/i5/i7 7th,10th,12th Gen processors, compatible with Windows and Linux operating systems.

[Heat Dissipation] Zero-fan passive heat exchange structure, aluminum alloy front frame improves thermal conduction, eliminating fan failure risks.

[Environment] Dustproof and vibration-proof sealed design, maintains stable performance under fluctuating high-low temperature industrial environments.

[Interfaces] Dual Gigabit Ethernet, RS232/RS485 serial ports, multiple USB, HDMI, audio interface, wide voltage phoenix power connector.

[Installation] Support embedded mounting, wall mounting and desktop bracket installation.

Basic Specifications

Item	7th Gen Config	10th Gen Config	12th Gen Config
Model	YPC-104VC	YPC-104VC	YPC-104VC
Display	10.4"	10.4"	10.4"
Touch Screen	10-point capacitive touch / 4-wire resistive touch optional	10-point capacitive touch / 4-wire resistive touch optional	10-point capacitive touch / 4-wire resistive touch optional
Resolution	1024*768	1024*768	1024*768
Brightness	250cd/m² (Customizable brightness)	250cd/m² (Customizable brightness)	250cd/m² (Customizable brightness)
Processor	Intel® Kaby Lake 7th Gen (i3/i5/i7)	Intel® Comet Lake 10th Gen (i3/i5/i7)	Intel® Alder Lake 12th Gen (i3/i5/i7)
BIOS	AMI UEFI BIOS	AMI UEFI BIOS	AMI UEFI BIOS
Chipset	Intel® SOC	Intel® SOC	Intel® SOC
Graphics	Integrated Intel® HD Graphics 620	Integrated 10th Gen Intel® UHD Graphics	Integrated Intel® Iris® Xe Graphics
Network	2*RTL8111H Gigabit Ethernet, supports WoL / PXE	2*RTL8111H Gigabit Ethernet, supports WoL / PXE	2*RTL8111H Gigabit Ethernet, supports WoL / PXE
Heat Dissipation	Fanless passive cooling	Fanless passive cooling	Fanless passive cooling
I/O Interface	USB, RS232/RS485, HDMI, Audio, Phoenix power terminal	USB, RS232/RS485, HDMI, Audio, Phoenix power terminal	USB, RS232/RS485, HDMI, Audio, Phoenix power terminal
Installation	Embedded / Wall-mounted / Desktop stand	Embedded / Wall-mounted / Desktop stand	Embedded / Wall-mounted / Desktop stand
Operating System	Windows 10/11, Linux optional	Windows 10/11, Linux optional	Windows 10/11, Linux optional
